REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Refer to: Secondary Bulkhead Centre Panel - GTDi 2.0L Petrol (501- 02 Front End Body Panels, Removal and Installation).

Left-hand drive vehicles

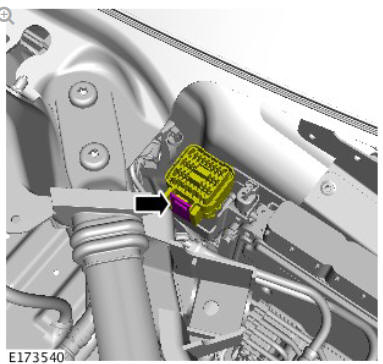

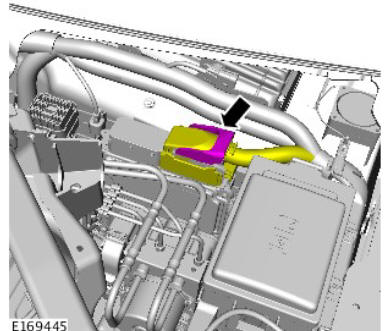

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

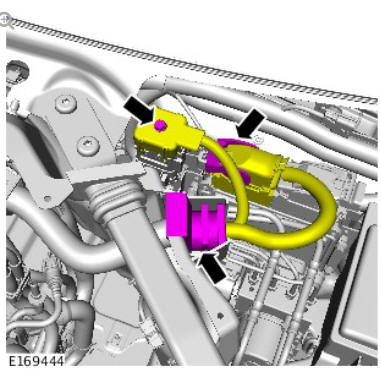

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

NOTE:

If equipped.

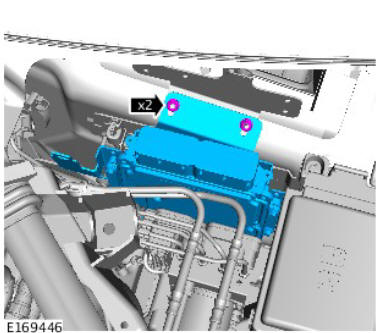

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

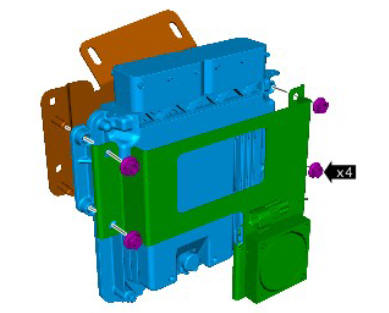

Torque: 7 Nm

NOTE:

Do not disassemble further if the component is removed for access only.

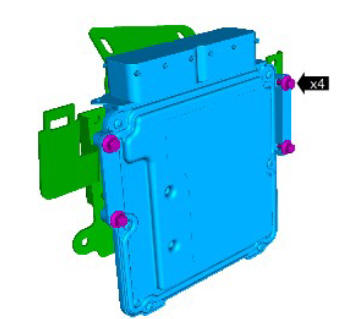

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

Torque: 7 Nm

Right-hand drive vehicles

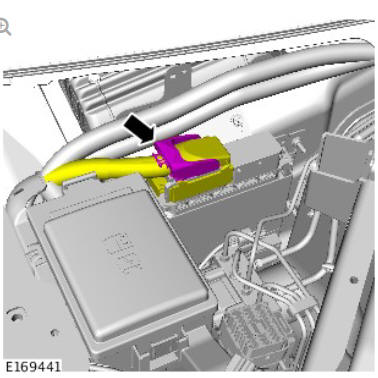

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

Torque: 3.6 Nm

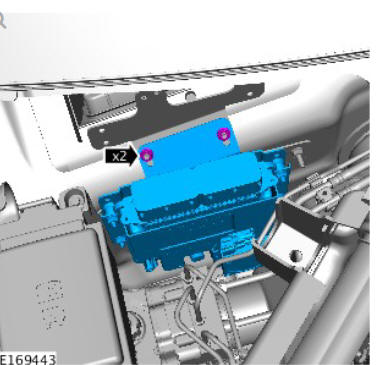

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

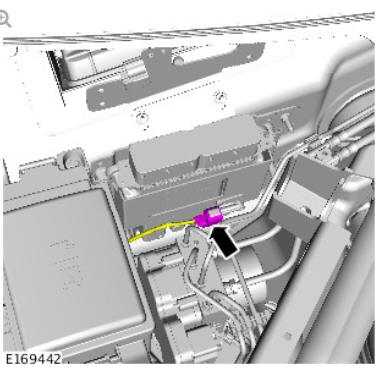

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

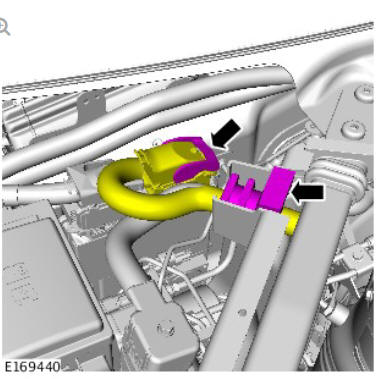

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

Torque: 7 Nm

NOTE:

Do not disassemble further if the component is removed for access only.

Electronic Engine Controls - Ingenium i4 2.0l Diesel Engine Control Module (G1875928) / Removal and Installation

Torque: 7 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new component has been installed, configure using Jaguar approved diagnostic equipment.
