Land Rover Discovery: Windshield Glass (G1805070) / Removal and
Installation
REMOVAL
Refer to: Plenum Chamber (412-01 Climate Control, Removal and
Installation).
NOTE:
The procedure must be carried out on both sides.
Refer to: 'A' Pillar Trim Panel (501-05 Interior Trim and
Ornamentation, Removal and Installation).

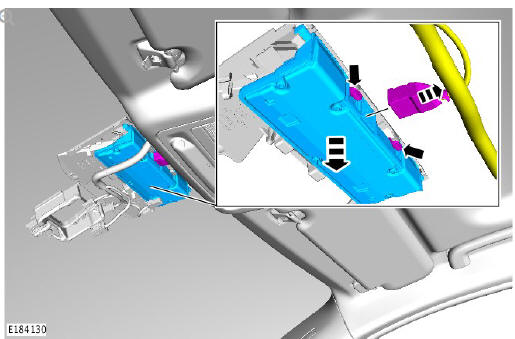

Refer to: Interior Rear View Mirror (501-09 Rear View Mirrors,
Removal and Installation).
.35.jpg)

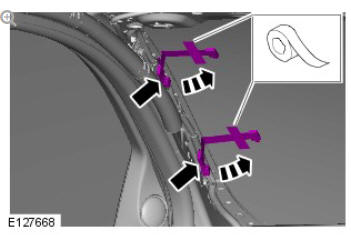

NOTE:
The procedure must be carried out on both sides.
.36.jpg)

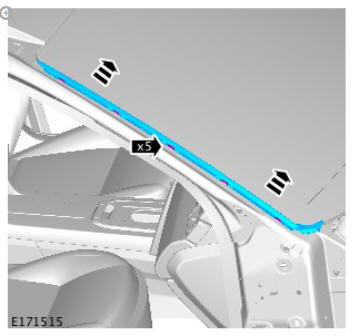

.37.jpg)
WARNING:
Wear safety goggles and protective gloves.
CAUTIONS:
- Protect the surrounding paintwork to avoid damage.
- Protect the surrounding components.
- Protect the surrounding components.
NOTE:
Windshield glass shown removed for clarity.

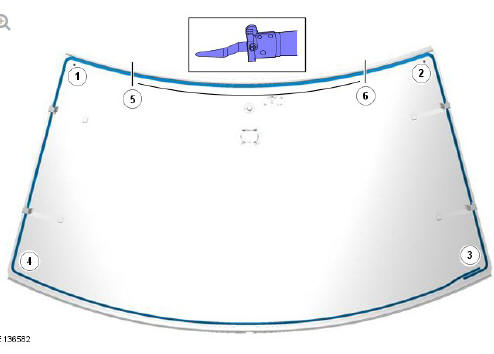

.38.jpg)
- Cut between points 3 and 4, use a WK1S blade, reverse cut
with the flat side against the body.
- Cut the bottom corner at points 3 and 4, use a WK1S blade.
- Cut between points 4 and 1, use a WK24ZRS blade against the
body and a WK11B controller arm set to 26mm cut depth.
- Cut between points 3 and 2, use a WK24ZRS blade against the
body and a WK11B controller arm set to 26mm cut depth.
- Cut between points 5 and 6, use a WK24RS.
- Cut between points 1 and 2, use a WK1S blade, reverse cut
with the flat side against the windshield glass and a WK11B
controller arm set to 26mm cut depth.
- Cut the top corner at points 1 and 2, use a WK1S blade.
- Cut any adhesive from the windshield to allow removal, use a
WK1S blade.
WARNING:
Eye protection must be worn.
With assistance, remove the windshield glass.
INSTALLATION
CAUTION:
Make sure that the mating faces are clean and free of foreign
material.
Prepare the window glass, window glass flange and trimmed PU
adhesive in accordance with the instructions included with the PU
adhesive kit.
WARNING:
This step requires the aid of another technician.
CAUTIONS:
- Make sure that the component is correctly located on the
locating dowels.
- Make sure that equal pressure is applied to the full length
of the component.

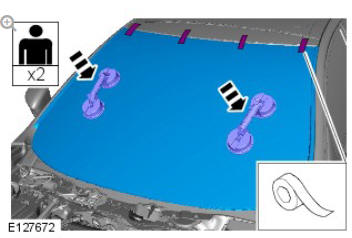

.39.jpg)
- With assistance, install the window glass.
- Lightly press the window glass to seat the sealer.
- Secure the windshield glass in position using tape.
- If the ambient temperature falls below 10 degrees C, apply
warm air (25 degrees C) continuously for 15 minutes.

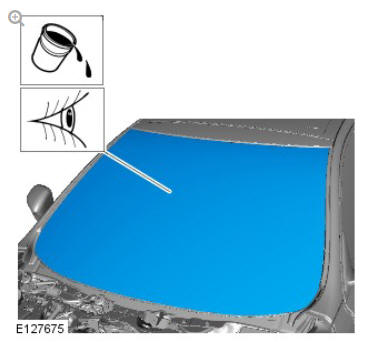

CAUTION:
Make sure that no excess sealant residue is evident.
.40.jpg)
- If water is used as a means for the leak check, then allow
sealant to dry before testing.
- Spray water around the windshield glass, mark any area that
leaks. Dry the windshield glass and sealant before applying
additional sealant.

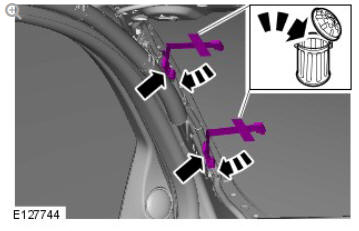

NOTE:
The procedure must be carried out on both sides.
.41.jpg)
NOTE:
If a new windscreen is fitted, the image processing control
module (IPCM) must be calibrated using the approved
diagnostic equipment.
- To install reverse the removal procedure.
