Land Rover Discovery: Seat Position Sensor - Notes on Removal / Replacement
NOTE:
NAS vehicles have a seat position sensor fitted to both the driver and passenger-side seats.
The seat position sensor, a hall-effect sensor, is fitted to the underside of both the driver and passenger-side seats on NAS vehicles. It should be noted that these sensors cannot be re-installed once removed. If any work is undertaken that requires removal of the seat position sensor, a NEW sensor
MUST be fitted. Note that different sensors are fitted to left-side and rightside seats, so care should be taken to ensure the correct replacement parts are installed
SUPPLEMENTAL RESTRAINTS SYSTEM ( SRS ) AK 2 TYPE CONNECTORS
.19.jpg)

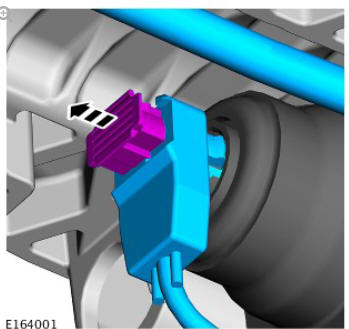

- Incorrect Position (Disengaged)
.20.jpg)

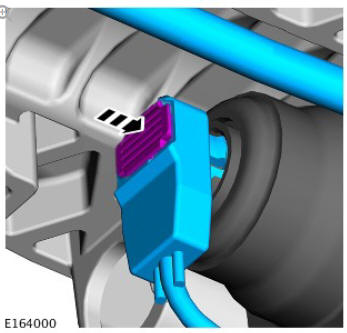

- Correct Position (Engaged)

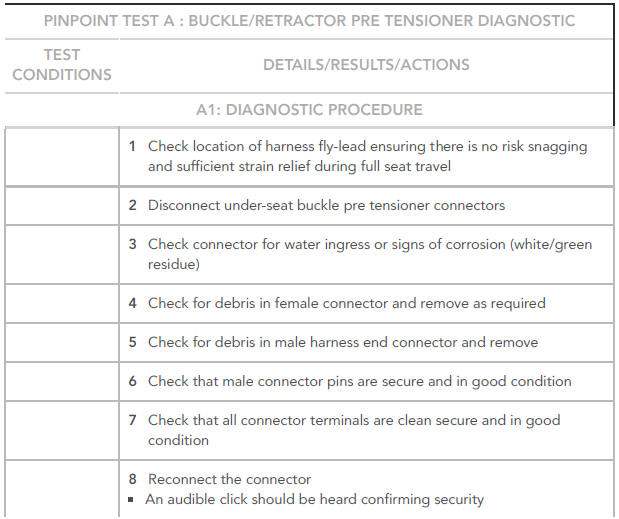

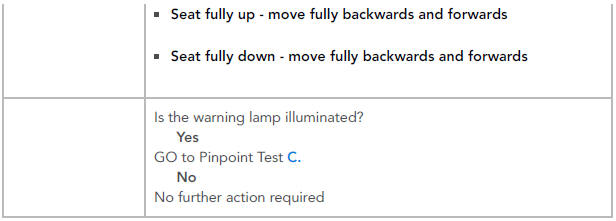

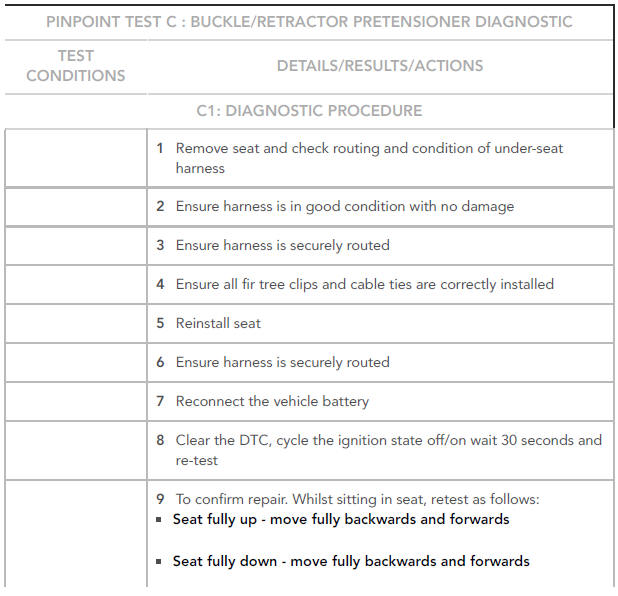

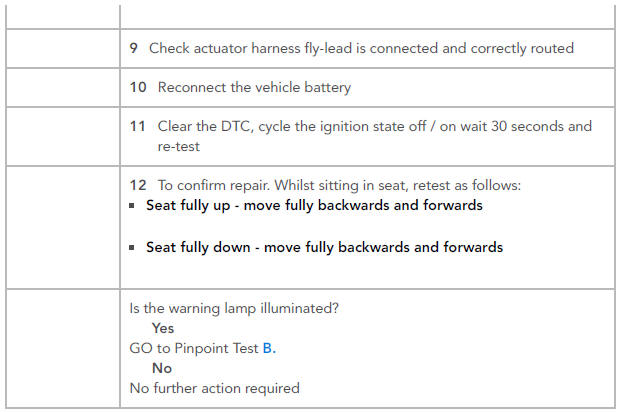

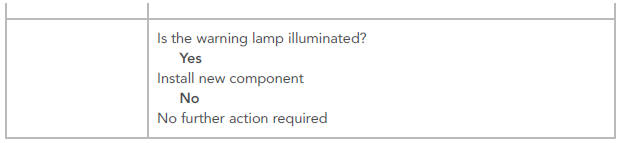

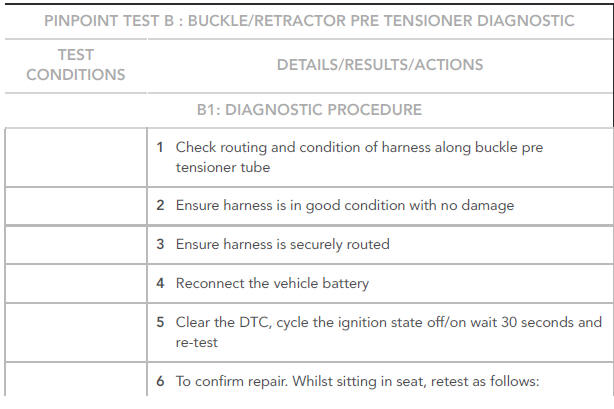

Seatbelt Buckle Pre Tensioner Diagnostics

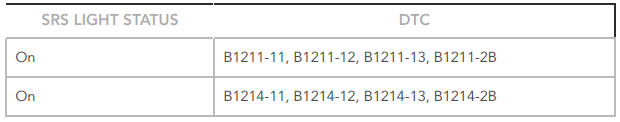

This procedure should be used to aid diagnosis of the following supplementary restraints system (SRS) - buckle pre tensioner (PBP) fault codes
.21.jpg)
WARNINGS:
- Prior to any work on the SRS system the vehicle battery must be disconnected system the vehicle battery must be disconnected
- Please wait for 120 seconds to allow the airbag deployment energy reserve to dissipate
.22.jpg)
.23.jpg)
WARNINGS:
- Prior to any work on the SRS system the vehicle battery must be disconnected system the vehicle battery must be disconnected
- Please wait for 120 seconds to allow the airbag deployment energy reserve to dissipate
.24.jpg)
.25.jpg)
WARNINGS:
- Prior to any work on the SRS system the vehicle battery must be disconnected system the vehicle battery must be disconnected
- Please wait for 120 seconds to allow the airbag deployment energy reserve to dissipate
.26.jpg)
.27.jpg)
DTC INDEX
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00. REFER to: Diagnostic Trouble Code Index - DTC: Restraints Control Module (RCM) (100-00 General Information, Description and Operation).
REFER to: Diagnostic Trouble Code Index - DTC: Occupant Classification Sensor Control Module (OCSCM) (100-00 General Information, Description and Operation).
