Land Rover Discovery: Rear Door Latch (G1791774) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Handles, Locks, Latches and Entry Systems / Rear Door Latch (G1791774) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Refer to: Exterior Rear Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

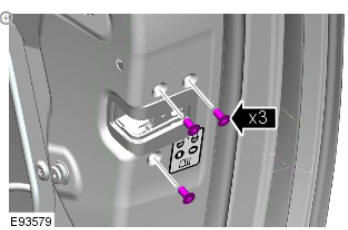

Rear door latch (G1791774) removal and installation

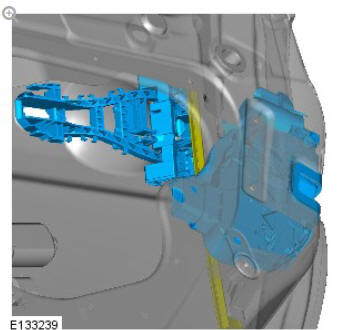

Rear door latch (G1791774) removal and installation

Torque: 1.2 Nm

NOTE:

Loosen the bolt, but do not fully remove.

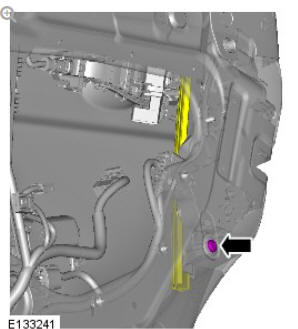

Rear door latch (G1791774) removal and installation

Torque: 3.2 Nm

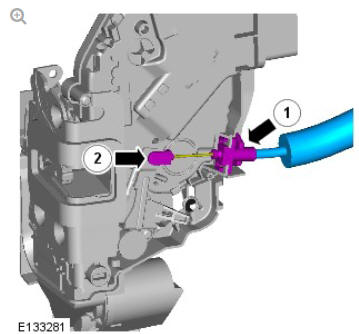

Rear door latch (G1791774) removal and installation

Torque: 7 Nm

CAUTION:

Take extra care not to damage the component.

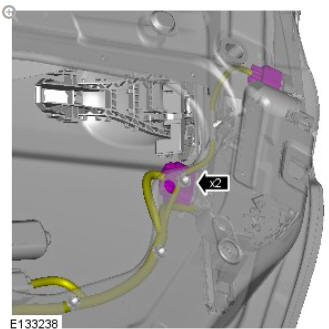

Rear door latch (G1791774) removal and installation

NOTE:

Do not disassemble further if the component is removed for access only.

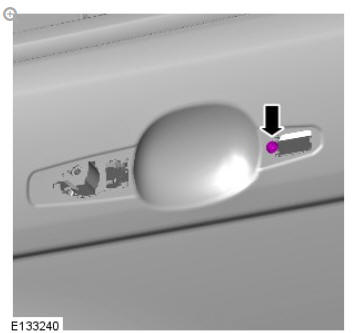

Rear door latch (G1791774) removal and installation

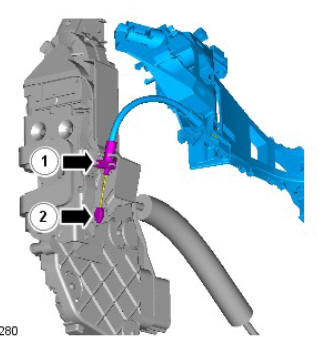

Rear door latch (G1791774) removal and installation

INSTALLATION

To install, reverse the removal procedure.
