Land Rover Discovery: Portable media controls

Portable media controls

The following portable devices can be used on the Media system: iPod, USB, AUX, and Bluetooth wireless technology devices.

Note: Auxiliary devices have no Touch screen controls.

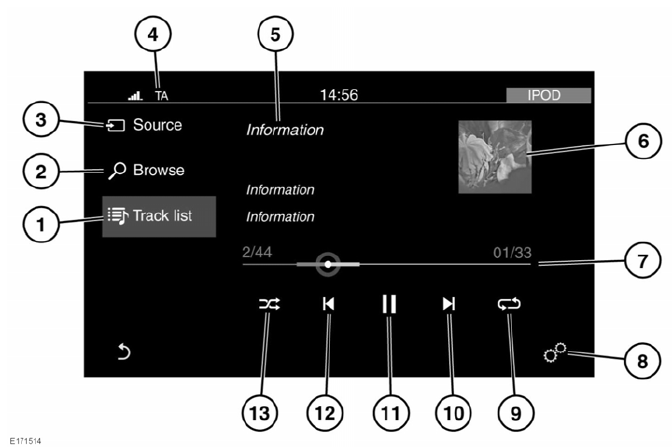

  1. Track list: Touch to select the list of tracks from the connected device.
  2. Browse: Touch to select the menu screen for the required music or audio source subject list for the connected device: Playlists, Artists, Albums, Songs, etc.
  3. Source: Touch to select the media source menu screen.

Note: The media source has to be connected to the vehicle before it will appear in the media source list.

  1. Status icons: When a phone is connected, the battery level and network signal strength is displayed.

    Also, when selected, TA (Traffic announcements) is displayed.

  2. Information relating to the music or audio being played.
  3. Image display:
  • If available, the album art for the current track being played will be displayed.
  • When a video (from a connected USB source only) is about to be played, an image from the video is displayed.
  1. Progress bar: Drag the spot or touch the line to move forwards or backwards through the track.
  2. Touch to select the SETTINGS pop-up menu. Select Media or Bluetooth, via the Settings option.
  3. Continuous play: Touch to play the current track continuously.
  4. Skip/scan forwards: Touch to skip forwards to the start of the next track, or touch and hold to scan forwards through the current track being played. Playback resumes when released.
  5. Pause/play: Touch to pause playback; touch again to resume playback.
  6. Skip/scan backwards: Touch to skip back to the beginning of the current track being played, or touch and hold to scan backwards through the current track being played. Playback resumes when released.
  7. Shuffle: Touch to play random tracks from the current MP3 folder, USB folder, or iPod playlist.
