REMOVAL

CAUTION:

Take extra care not to damage the surrounding components.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Left illustration shown, right is similar.

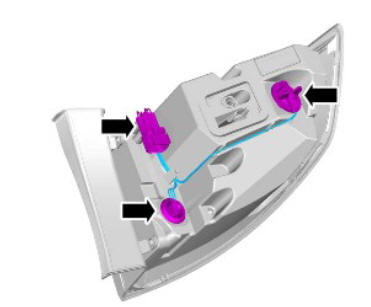

Outer Tail lamp Assembly (G1817630) Removal and Installation

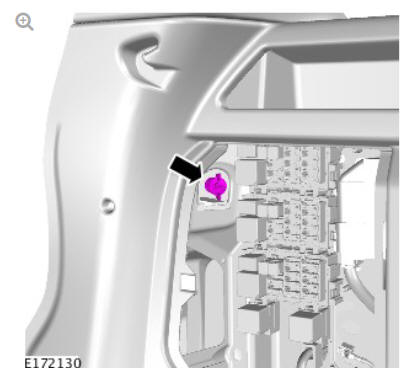

Outer Tail lamp Assembly (G1817630) Removal and Installation

Torque: 2.5 Nm

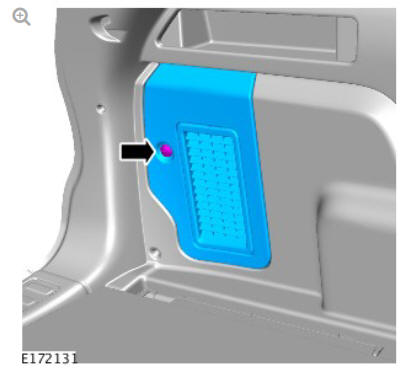

Outer Tail lamp Assembly (G1817630) Removal and Installation

NOTE:

Do not disassemble further if the component is removed for access only.

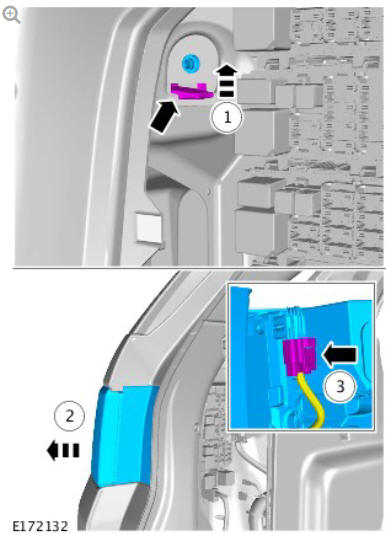

Outer Tail lamp Assembly (G1817630) Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.
