REMOVAL

CAUTION:

Protect the surrounding paintwork to avoid damage.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Right illustration shown, left is similar

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Wheel and Tire (204-04, Removal and Installation).

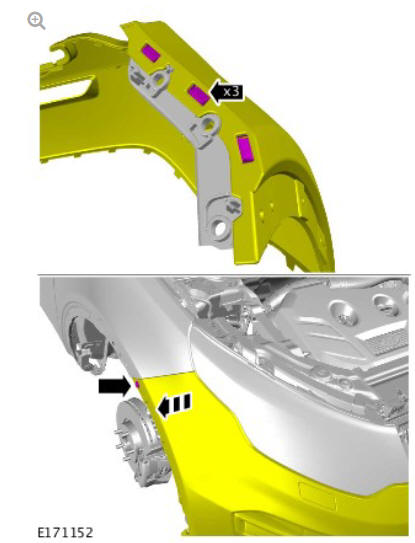

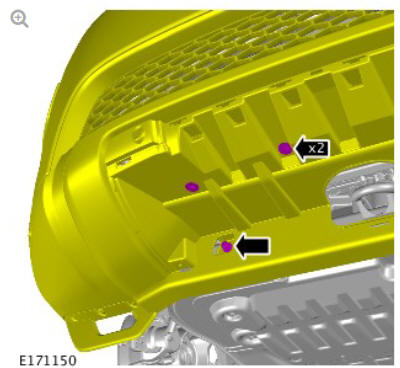

Headlamp Assembly (G1785269) Removal and Installation

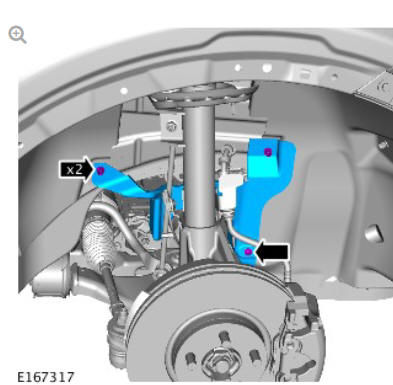

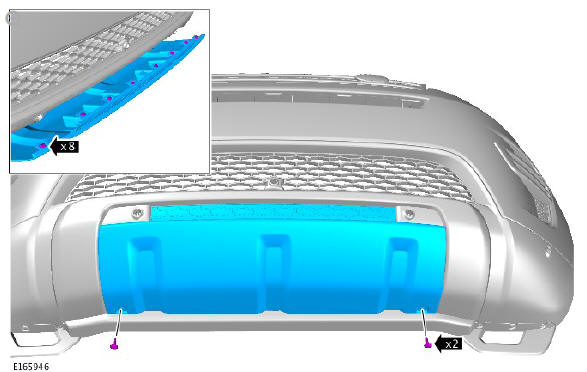

Headlamp Assembly (G1785269) Removal and Installation

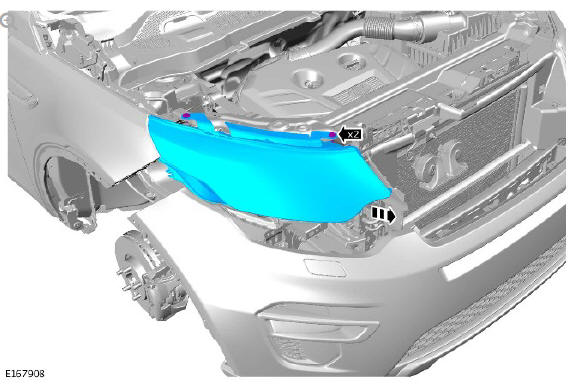

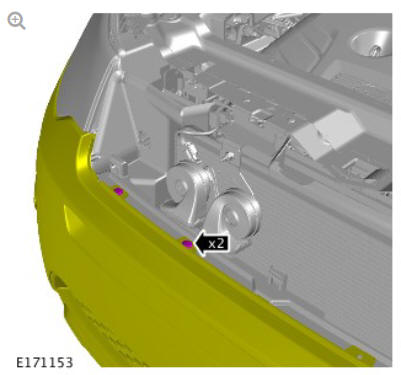

Headlamp Assembly (G1785269) Removal and Installation

CAUTION:

Take extra care not to damage the component.

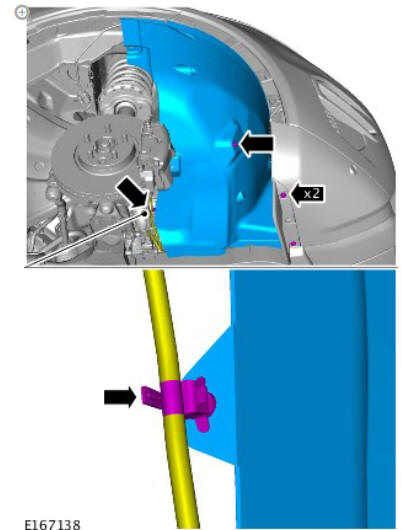

Headlamp Assembly (G1785269) Removal and Installation

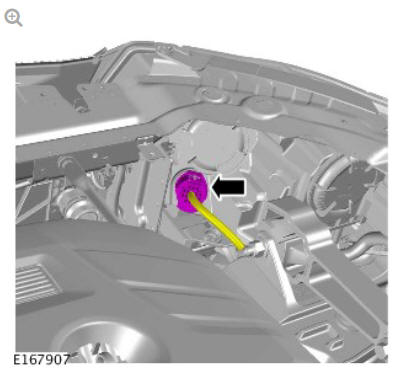

Headlamp Assembly (G1785269) Removal and Installation

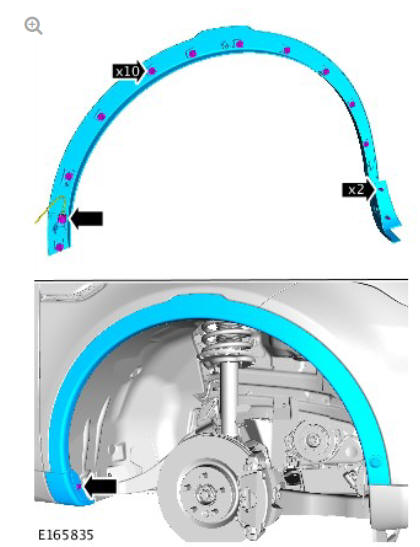

Headlamp Assembly (G1785269) Removal and Installation

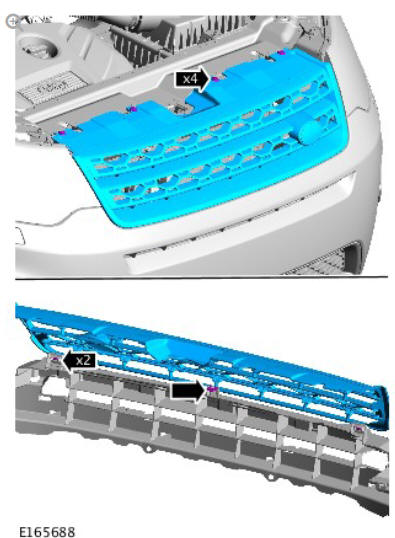

Headlamp Assembly (G1785269) Removal and Installation

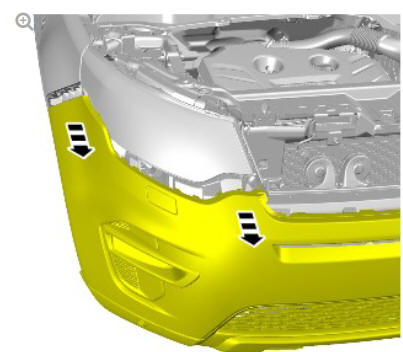

Headlamp Assembly (G1785269) Removal and Installation

Torque: 4.5 Nm

Headlamp Assembly (G1785269) Removal and Installation

Torque: 4.5 Nm

Headlamp Assembly (G1785269) Removal and Installation

Headlamp Assembly (G1785269) Removal and Installation

Torque: 4 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. Check the headlamp alignment and adjust if necessary.

    Refer to: Headlamp Adjustment (417-01, General Procedures).

    next pageCentral Junction BoxHeadlamp Bulb (G1785270) / Removal and Installationnext page
