Land Rover Discovery: Front Fog Lamp (G1785314) Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Lighting / Fog Lamps / Front Fog Lamp (G1785314) Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Left illustration shown, Right is similar.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Remove the left front wheel and tire.

Refer to: Wheel and Tire (204-04, Removal and Installation).

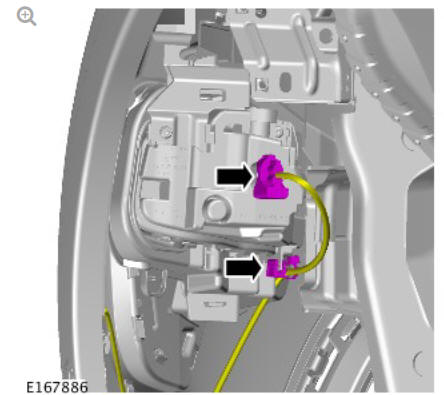

Front Fog Lamp (G1785314) Removal and Installation

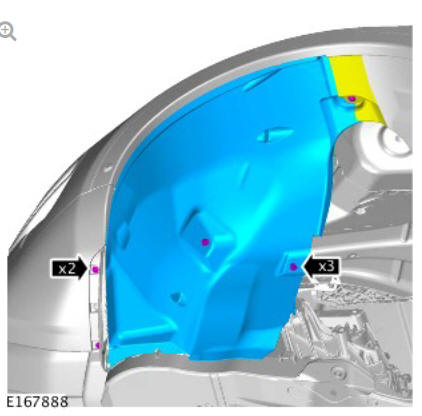

Front Fog Lamp (G1785314) Removal and Installation

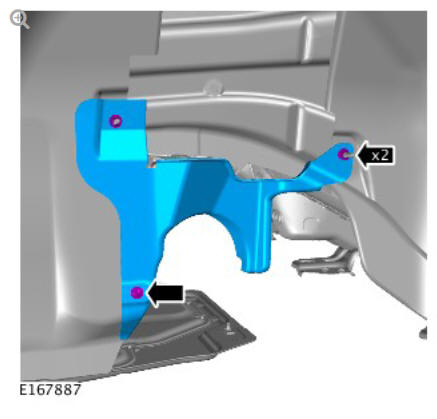

Front Fog Lamp (G1785314) Removal and Installation

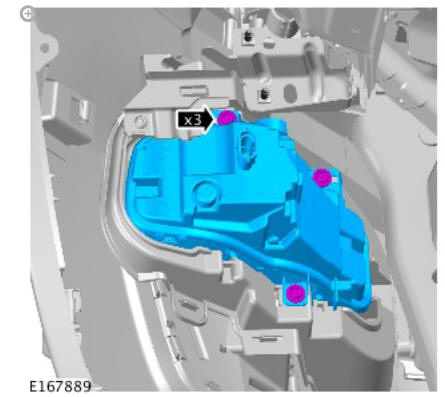

Front Fog Lamp (G1785314) Removal and Installation

Torque: 2 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. Check the fog lamp beam alignment.

    Refer to: Front Fog Lamp Adjustment (417-01, General Procedures).

Rear Fog Lamp (G1781467) Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

  1. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

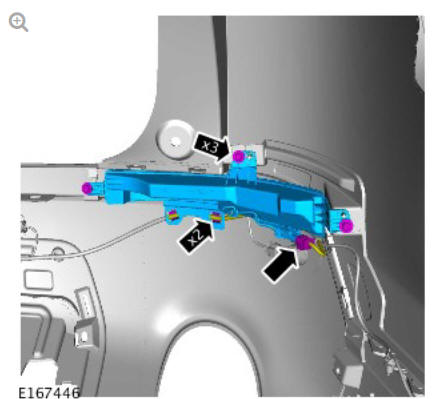

Rear Fog Lamp (G1781467) Removal and Installation

Torque: 4.5 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
