Land Rover Discovery: Front end Body Panels Fender (G1780778) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Front end body panels / Front end Body Panels Fender (G1780778) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • LH illustration shown, RH is similar.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Front Bumper Cover (501-19, Removal and Installation).

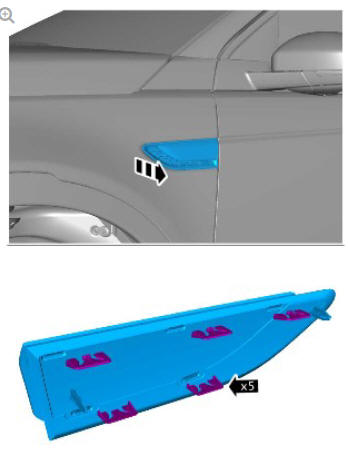

Front end body panels fender (G1780778) removal and installation

Front end body panels fender (G1780778) removal and installation

Torque: 4.1 Nm

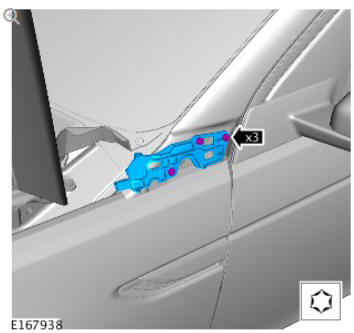

Front end body panels fender (G1780778) removal and installation

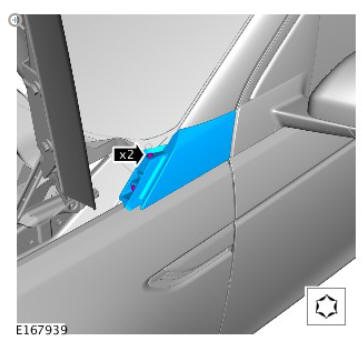

Front end body panels fender (G1780778) removal and installation

Torque: 4.1 Nm

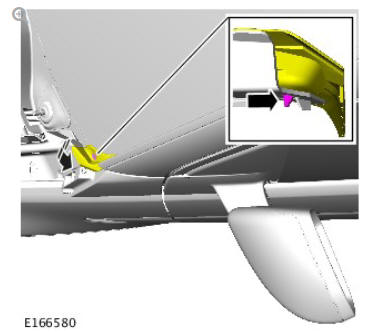

CAUTION:

Carefully release either side of the component to avoid damage.

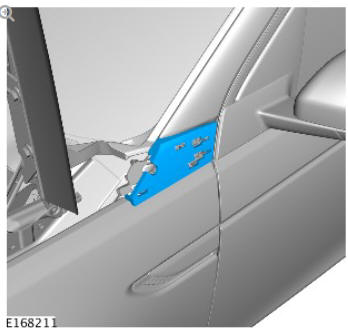

Front end body panels fender (G1780778) removal and installation

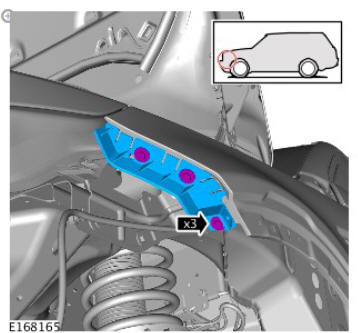

Front end body panels fender (G1780778) removal and installation

Torque: 10 Nm

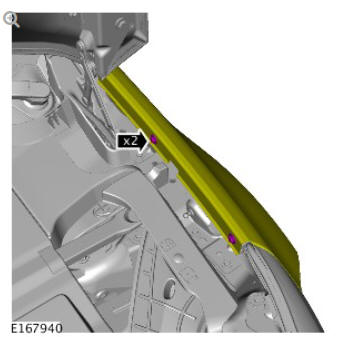

Front end body panels fender (G1780778) removal and installation

Torque: 10 Nm

CAUTION:

Make sure to protect the paintwork.

NOTE:

Make sure that the component is installed to the position noted on removal.

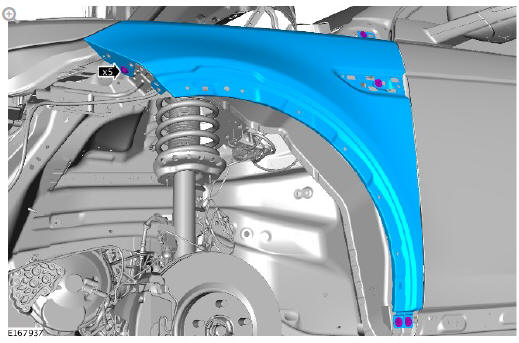

Front end body panels fender (G1780778) removal and installation

Torque: 10 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. Check the gap and profiles of the fender are correct.

    Refer to: Body and Frame (501-26, Description and Operation).
