Land Rover Discovery: Body Closure Noise Vibration and Harshness Sealing

Land Rover Discovery (2009–2016) Service Manual / Body / Body Repairs and General Information / Body Closure Noise Vibration and Harshness Sealing

ACTIVATION

NOTE:

If the door is not supplied with the Noise Vibration and Harshness (NVH) pad and seam sealant bead then follow this procedure.

Body closure noise vibration and harshness sealing

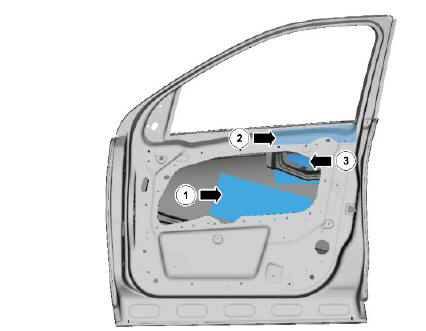

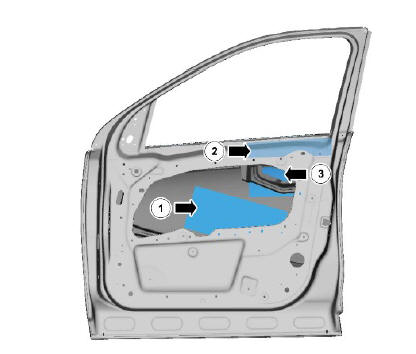

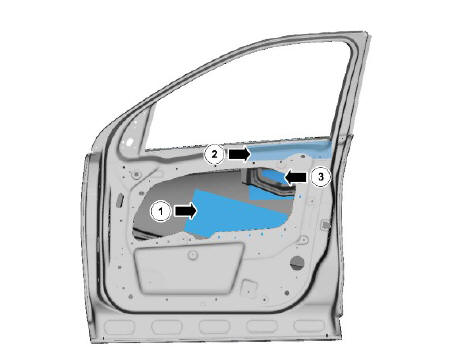

  1. Install a 400 mm x 180 mm Noise, Vibration and Harshness (NVH) pad as indicated.

Body closure noise vibration and harshness sealing

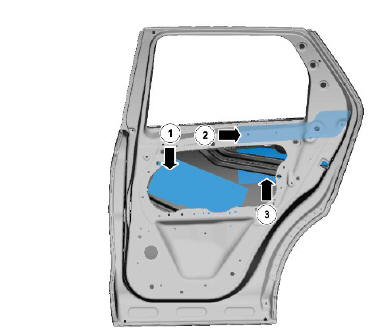

  1. Install a 365 mm x 130 mm Noise, Vibration and Harshness (NVH) pad as indicated.

Body closure noise vibration and harshness sealing

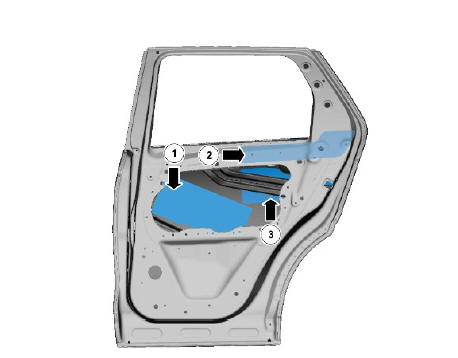

  1. Install a 390 mm x 83 mm Noise, Vibration and Harshness (NVH) pad as indicated.

Body closure noise vibration and harshness sealing

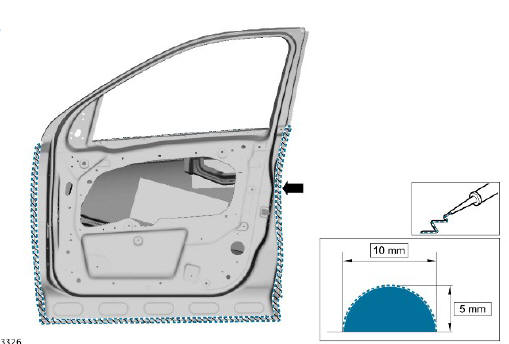

  1. Apply the seam sealant to the door as indicated.

Body closure noise vibration and harshness sealing

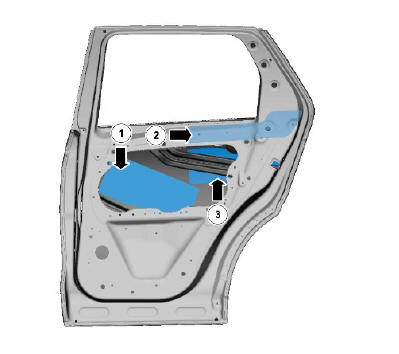

  1. Install a 400 mm x 180 mm Noise, Vibration and Harshness (NVH) pad as indicated.

Body closure noise vibration and harshness sealing

  1. Install a 365 mm x 125 mm Noise, Vibration and Harshness (NVH) pad as indicated.

Body closure noise vibration and harshness sealing

  1. Install a 405 mm x 83 mm Noise, Vibration and Harshness (NVH) pad as indicated.

Body closure noise vibration and harshness sealing

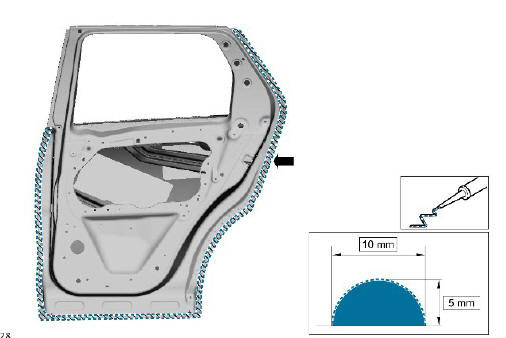

  1. Apply the seam sealant to the door as indicated.
