Land Rover Discovery: AM/FM Radio controls

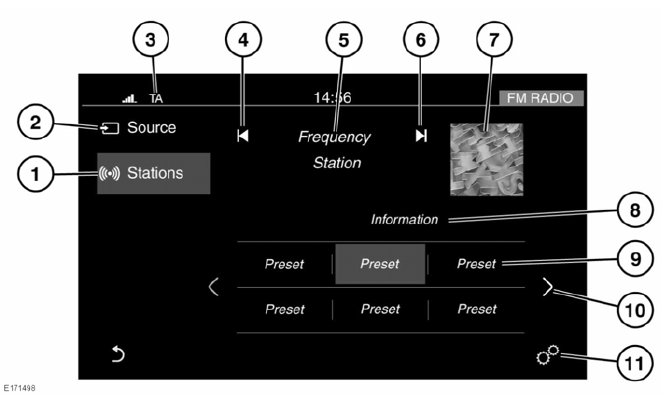

AM/FM Radio controls

  1. Stations: Touch to select the station list for the chosen radio source.
  2. Source: Touch to select the media source list.
  3. Status icons: When a phone is connected, the battery level and network signal strength is displayed.

    Also, when selected, TA (Traffic announcements) is displayed.

  4. Seek down: Touch to auto-seek down the frequency to the next radio station.

Note: In some markets, additional buttons are available to enable manual tuning.

  1. The selected station name and frequency.
  2. Seek up: Touch to auto-seek up the frequency to the next radio station.

Note: In some markets, additional buttons are available to enable manual tuning.

  1. Waveband image (if available).
  2. Information from the selected station.
  3. Station presets:
  • Touch to tune to the station stored on that preset.
  • Touch and hold to store the current station on that preset.
  • Use the seek buttons on the steering wheel to change to the next or previous preset station.
  1. Touch to scroll through the preset stations.
  2. Touch to select the SETTINGS pop-up menu. Select Media and then Radio, where the following features can be activated/deactivated:
  • Manual tune.
  • Radiotext (FM only).
  • Alternative Frequency (AF) (FM only).
  • Regionalization (FM only).

Note: Settings options may vary, depending on the market.
